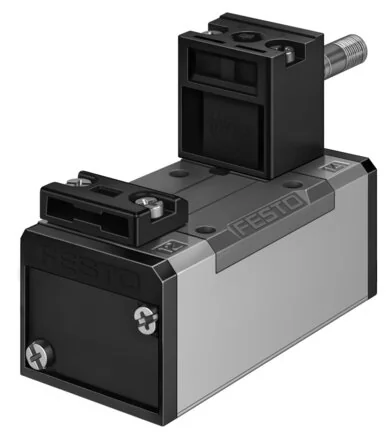

Festo - MFH-5/2-D-3-FR-C-EX-535962 - Solenoid Valve

SKU: festo-mfh-5-2-d-3-fr-c-ex-535962

Browse all parts
Festo - MFH-5/2-D-3-FR-C-EX-535962 - Solenoid Valve

€385.83€329.77 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€385.83

Brand
Festo
Overlap
positive Überdeckung
ISO-Code
352
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With Throughway bore and screw
Flow Direction
Not reversible
Seals Material
NBR
Vacuum Capable
no
Valve Function
5/2 monostable
Build Width (mm)
65
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
ATEX Gas Category
II 2G
Sealing Principle
Soft
ATEX Dust Category
II 2D
Control Air Supply
Internal
Nominal Width (mm)
14,5
Construction Set Up
Piston pusher
Protection Category
IP65
Complies To Standard
ISO 5599-1
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
71
Electrical Connection
Via f-coil, order separately
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
28
Ex Ambient Temperature
-5°C <= Ta <= +40°C
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 3 to ISO 5599-1
Shifting Time Off (ms)
79
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
0,3 to 1
Ambient Temperature (°C)
-5 to 40
Sound Pressure Level (dB(A))
85
Exhaust Control Connection 84
M5
Ex Ignition Protection Type Gas
Ex h IIC T4 Gb
Ex Ignition Protection Type Dust
Ex h IIIC T105°C Db
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2200
Max. Negative Test Impulse For 1 Signal
3700
Ex Protection Approval Outside Of The EU
EPL Gb (GB)
UKCA Marking (See Declaration Of Conformity)
nach UK EX Vorschriften
CE Certificate (See Declaration Of Conformity)
to EU EX protection directive (ATEX)
Standard Nominal Flow Rate (Standardised To DIN 1343)
4500
EAN
4052568170127
Manufacturer
Festo
