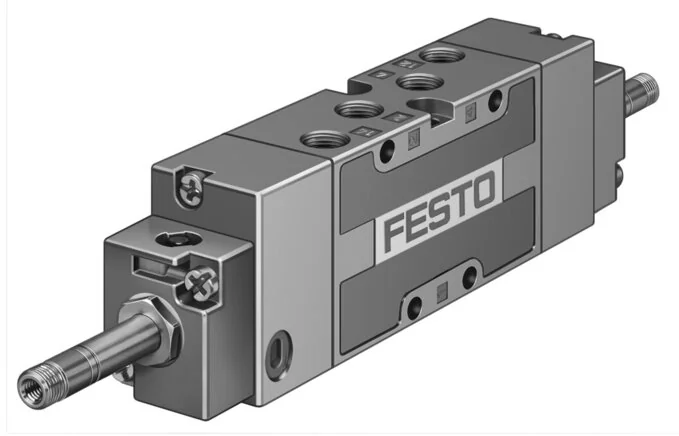

Festo - MFH-5/3B-1/8-S-B-30995 - Solenoid Valve

SKU: festo-mfh-5-3b-1-8-s-b-30995

Browse all parts
Festo - MFH-5/3B-1/8-S-B-30995 - Solenoid Valve

€459.05€392.35 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€459.05

Brand
Festo
Overlap
positive Überdeckung
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Reversible
Seals Material
NBR
Valve Function
5/3 ventilated
Build Width (mm)
26
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
8
Shifting Time (ms)
16
Construction Set Up
Piston pusher
Electrical Connection
Via f-coil, order separately
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
23
Control Pressure (MPa)
0,3 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Pneumatic Connection 4
G1/8
Pneumatic Connection 5
G1/8
Shifting Time Off (ms)
21
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
-0,09 to 1
Ambient Temperature (°C)
-5 to 40
Bearing Temperature (°C)
-40 to 60
Control Air 12 Connection
G1/8
Control Air 14 Connection
G1/8
Exhaust Control Connection 82
M5
Exhaust Control Connection 84
M5
Max. Switching Frequency (Hz)
3
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2200
Max. Negative Test Impulse For 1 Signal
3700
Standard Nominal Flow Rate (Standardised To DIN 1343)
1000
EAN
4052568114305
Manufacturer
Festo
