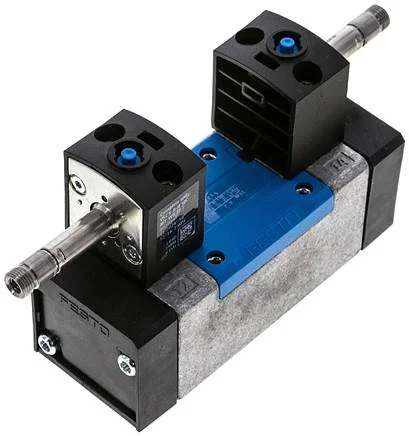

Festo - MFH-5/3G-D-1-C-150982 - Solenoid Valve

SKU: festo-mfh-5-3g-d-1-c-150982

Browse all parts
Festo - MFH-5/3G-D-1-C-150982 - Solenoid Valve

€309.24€264.31 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€309.24

Brand
Festo
Overlap
positive Überdeckung
ISO-Code
156
Reset Mode
Mechanical spring
Control Type
pilot operated
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate, With throughway bores
Flow Direction
Not reversible
Seals Material
HNBR, NBR
Valve Function
5/3 closed
Build Width (mm)
42
Exhaust Function
Can be throttled
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
8,0
Construction Set Up
Piston pusher
Protection Category
IP65
Complies To Standard
ISO 5599-1
Material Information
RoHs compliant
Aluminium die casting
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
43
Electrical Connection
Via f-coil, order separately
Hand Assist Actuation
With Accessories ratcheting, tentative
Installation Position
arbitrary
Shifting Time On (ms)
18
Pneumatic Connection 1
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 1 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 1 to ISO 5599-1
Maritime Classification
see Certificate
Operating Pressure (bar)
3 to 10
Ambient Temperature (°C)
-5 to 40
Control Air 12 Connection
Connection plate Size 1 to ISO 5599-1
Control Air 14 Connection
Connection plate Size 1 to ISO 5599-1
Max. Positive Test Impulse At 0 Signal (µs)
2.200
Max. Negative Test Impulse For 1 Signal (µs)
3.700
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343) (l/min)
1.200
EAN
4052568116545
Manufacturer
Festo
