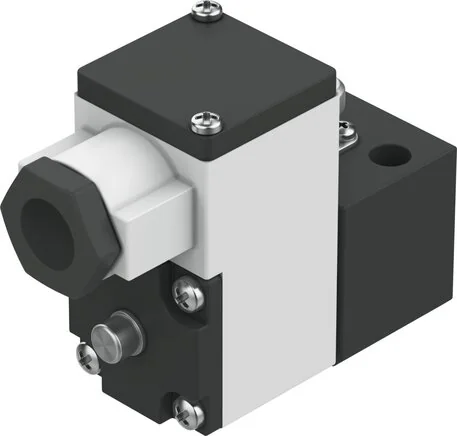

Festo - MGXIAH-3/2-H-T-0.8-24DC-EX-8118347 - Pilot Valve

SKU: festo-mgxiah-3-2-h-t-0-8-24dc-ex-8118347

Browse all parts
Festo - MGXIAH-3/2-H-T-0.8-24DC-EX-8118347 - Pilot Valve

€329.09€281.27 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€329.09

Brand
Festo
Reset Mode
Mechanical spring
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
CNOMO
Flow Direction
Not reversible
Valve Function
3/2 closed monostable
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
ATEX Gas Category
II 1G
ATEX Dust Category
II 1D
Certification Body
IEC: IECEx CML 17.0030X
Construction Set Up
Switch on valve
Max. Input Power Pi
-55°C to +65°C T6 = 1W
Protection Category
IP65
Hand Assist Actuation
tentative
Ex Ambient Temperature
-40°C<=Ta<=50°C/65°C
LABS (PWIS) Conformity
VDMA24364-Zone III
Operating Pressure (MPa)
-0,09 to 0,8
Ambient Temperature (°C)
-55 to 80
Coil Characteristic Value
24 V DC: 1,5 W
Insulation Material Class
H
Max. Input Current Ii (A)
0,67
Max. Input Voltage Ui (V)
31
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Ex Ignition Protection Type Gas
Ex ia IIC T6...T5 Gb
Ex Ignition Protection Type Dust
Ex ia IIIC T135°C Db
Permitted Frequency Oscillations
± 10 %
Effective Internal Capacitance Ci
Negligibly small
Effective Internal Inductivity Li
Negligibly small
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Ex Protection Approval Outside Of The EU
EPL Ga (IEC-EX)
CE Certificate (See Declaration Of Conformity)
to EU EX protection directive (ATEX)
EAN
4052568580971
Manufacturer
Festo
