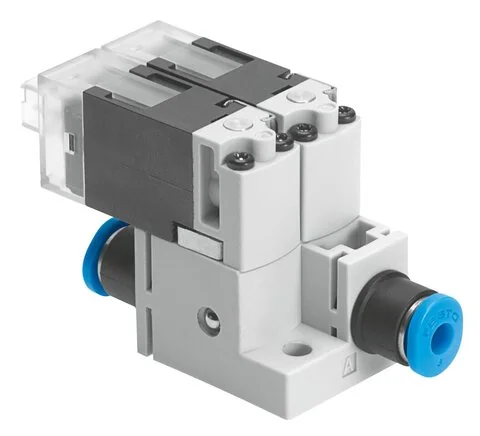

Festo - MHA1-2X2/2G-1,5-3-3-3-562051 - Vacuum Valve

SKU: festo-mha1-2x2-2g-1-5-3-3-3-562051

Browse all parts
Festo - MHA1-2X2/2G-1,5-3-3-3-562051 - Vacuum Valve

€162.02€138.48 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€162.02

Brand
Festo
Overlap
negative Überdeckung
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Vacuum Capable
yes
Valve Function
2x2/2 closed monostable
Screws Material
Steel
Build Width (mm)
20
Exhaust Function
Cannot be throttled
Housing Material
PPS-verstärkt
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Nominal Width (mm)
1,5
Protection Category
IP40
Max. Line Length (m)
30
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
20
Electrical Connection
Plug KMH
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
6
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
QS-3
Pneumatic Connection 2
QS-3
Shifting Time Off (ms)
6
Pneumatic Connection 11
QS-3
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0 to 1.5
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 60
Coil Characteristic Value
24 V DC: Niederstromphase 0,7 W, Hochstromphase 3,0 W
Max. Switching Frequency (Hz)
10
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Operating Pressure Reversible (bar)
-0,95 to 0
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Standard Flow Rate (Standardised To DIN 1343)
30
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
30
EAN
4052568208905
Manufacturer
Festo
