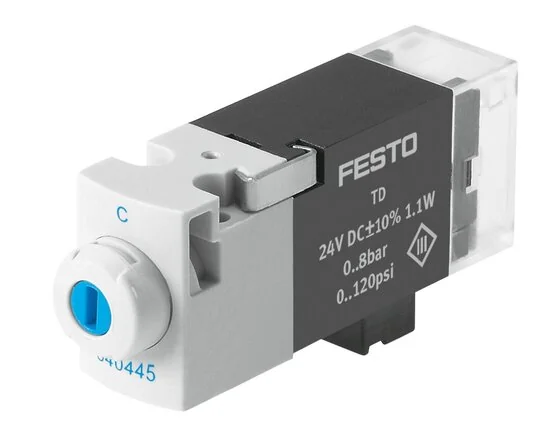

Festo - MHA1-M1LH-3/2G-0,6-PI-540445 - Solenoid Valve

SKU: festo-mha1-m1lh-3-2g-0-6-pi-540445

Browse all parts
Festo - MHA1-M1LH-3/2G-0,6-PI-540445 - Solenoid Valve

€53.91€46.08 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€53.91

Brand
Festo
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
10
Exhaust Function
Can be throttled
Housing Material
PPS-verstärkt
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
UL MH19482
Nominal Width (mm)
0,65
Construction Set Up
Poppet valve with reset spring
Protection Category
IP40
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
10
Electrical Connection
Plug
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
4
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
Connection plate
Pneumatic Connection 2
Connection plate
Pneumatic Connection 3
Connection plate
Shifting Time Off (ms)
4
Valve Space - Labelling
Sign
Medium Temperature (°C)
-5 to 40
Operating Pressure (MPa)
0 to 0.8
Signal Condition Display
LED
Ambient Temperature (°C)
-5 to 40
Bearing Temperature (°C)
-20 to 60
Coil Characteristic Value
24 V DC: 1,1 W
Max. Switching Frequency (Hz)
20
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Electrical Power Consumption (W)
1,1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
10
EAN
4052568090470
Manufacturer
Festo
