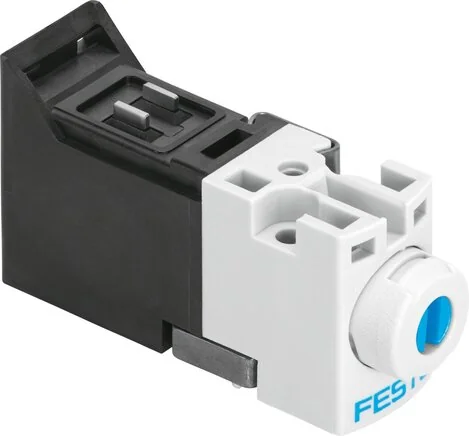

Festo - MHA1-M4R-3/2G-0,6-P3-8025224 - Solenoid Valve

SKU: festo-mha1-m4r-3-2g-0-6-p3-8025224

Browse all parts
Festo - MHA1-M4R-3/2G-0,6-P3-8025224 - Solenoid Valve

€37.14€31.74 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€37.14

Brand
Festo
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
10
Exhaust Function
Can be throttled
Housing Material
PPS-verstärkt
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
UL MH19482
Nominal Width (mm)
0,65
Construction Set Up
Poppet valve with reset spring
Protection Category
IP65
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
10
Electrical Connection
Via electrical connection plate
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
5
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
Connection plate
Pneumatic Connection 2
Connection plate
Pneumatic Connection 3
Connection plate
Shifting Time Off (ms)
5
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
-5 to 40
Bearing Temperature (°C)
-20 to 60
Coil Characteristic Value
5 V DC: 1,0 W
Max. Switching Frequency (Hz)
10
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Electrical Power Consumption (W)
1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
10
EAN
4052568279066
Manufacturer
Festo
