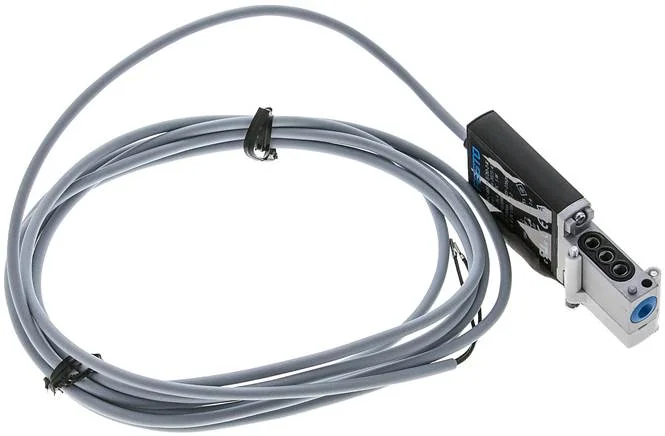

Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Material Note
RoHs compliant
Fastening Type
on connection plate
Flow Direction
Reversible with limitations
Valve Function
3/2 open monostable
Screws Material
Zinc-plated steel
Exhaust Function
Can be throttled
Housing Material
Zink-Druckguss, beschichtet
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Construction Set Up
Pressure-relieved poppet valve
Additional Functions
protection circuit
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Electrical Connection
cable
Hand Assist Actuation
tentative
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 2
Connection plate
Pneumatic Connection 11
Connection plate
Pneumatic Connection 33
Connection plate
Medium Temperature (°C)
40
Operating Pressure (MPa)
-0,09 to 0,8
Ambient Temperature (°C)
40
Coil Characteristic Value
24 V DC: Niederstromphase 1,25 W, Hochstromphase 5,0 W
Tolerance Shifting Time On
-0,333333333
Reverse Polarity Protection
Bipolar
Tolerance Shifting Time Off
-0,333333333
Max. Switching Frequency (Hz)
330
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Operating Pressure Reversible (MPa)
-0,09 to 0,1
Limits Ambient And Media Temperature
in Abhängigkeit von der Schaltfrequenz (siehe Diagramm)
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Shifting Time Scatter From 1 Hz (ms)
0,2
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
100
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
