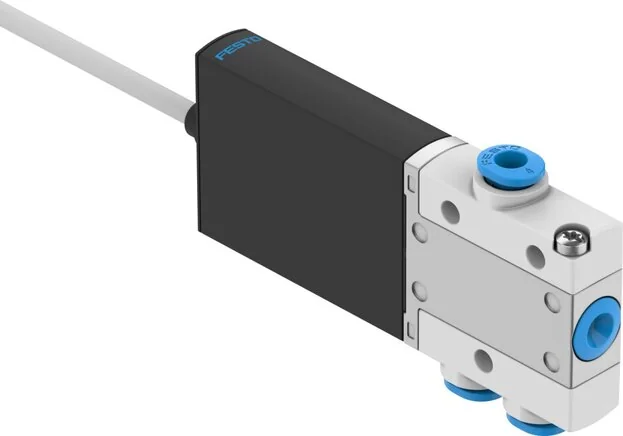

Festo - MHE2-MS1H-3/2G-QS-4-K-196137 - Solenoid Valve

SKU: festo-mhe2-ms1h-3-2g-qs-4-k-196137

Browse all parts
Festo - MHE2-MS1H-3/2G-QS-4-K-196137 - Solenoid Valve

€149.82€128.05 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€149.82

Brand
Festo
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Reversible with limitations
Seals Material
NBR
Valve Function
3/2 closed monostable
Screws Material
Zinc-plated steel
Build Width (mm)
10
Cable Length (m)
2,5
Exhaust Function
Can be throttled
Housing Material
Zink-Druckguss, beschichtet
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Nominal Width (mm)
2
Construction Set Up
Pressure-relieved poppet valve
Protection Category
IP55
Additional Functions
protection circuit
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
14
Cable Sleeve Material
PUR
Electrical Connection
cable
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
1,7
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-4
Pneumatic Connection 2
QS-4
Pneumatic Connection 3
QS-4
Shifting Time Off (ms)
2
Medium Temperature (°C)
60
Operating Pressure (MPa)
-0,09 to 0,8
Ambient Temperature (°C)
60
Coil Characteristic Value
24 V DC: Niederstromphase 1,25 W, Hochstromphase 5,0 W
Tolerance Shifting Time On
-0,333333333
Reverse Polarity Protection
Bipolar
Tolerance Shifting Time Off
-0,333333333
Max. Switching Frequency (Hz)
330
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Operating Pressure Reversible (MPa)
-0,09 to 0,1
Limits Ambient And Media Temperature
in Abhängigkeit von der Schaltfrequenz (siehe Diagramm)
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Shifting Time Scatter From 1 Hz (ms)
0,2
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
100
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568159221
Manufacturer
Festo
