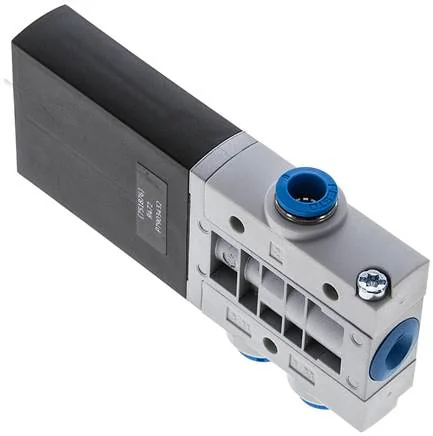

Festo - MHE4-M1H-3/2O-QS-8-525210 - Solenoid Valve

SKU: festo-mhe4-m1h-3-2o-qs-8-525210

Browse all parts
Festo - MHE4-M1H-3/2O-QS-8-525210 - Solenoid Valve

€144.64€123.62 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€144.64

Brand
Festo
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Reversible with limitations
Seals Material
NBR
Valve Function
3/2 open monostable
Screws Material
Zinc-plated steel
Build Width (mm)
18
Exhaust Function
Can be throttled
Housing Material
Zink-Druckguss, beschichtet
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Nominal Width (mm)
4
Construction Set Up
Pressure-relieved poppet valve
Protection Category
IP65
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
24
Electrical Connection
Plug
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
10,5
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 2
QS-8
Shifting Time Off (ms)
5
Pneumatic Connection 11
QS-8
Pneumatic Connection 33
QS-8
Medium Temperature (°C)
60
Operating Pressure (MPa)
-0,09 to 0,8
Ambient Temperature (°C)
60
Coil Characteristic Value
24 V DC: 5,6 W
Max. Switching Frequency (Hz)
120
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Operating Pressure Reversible (MPa)
-0,09 to 0,1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
400
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568161644
Manufacturer
Festo
