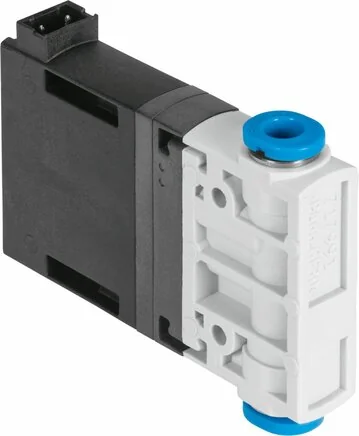

Reset Mode
Pneumatic spring
Material Note
RoHs compliant
Fastening Type
With throughway bores
Flow Direction
Not reversible
Valve Function
2/2 closed monostable
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Construction Set Up
Poppet valve without reset spring
Electrical Connection
Plug KMH
Hand Assist Actuation
None
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
QS-4
Pneumatic Connection 2
QS-4
Medium Temperature (°C)
-5 to 60
Operating Pressure (MPa)
0,05 to 0,8
Ambient Temperature (°C)
-5 to 60
Bearing Temperature (°C)
-20 to 50
Tolerance Shifting Time Off
-0,6
Max. Switching Frequency (Hz)
500
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
12 to 53
Tolerance Shifting Time On (%)
±15
Limits Ambient And Media Temperature
in Abhängigkeit von der Schaltfrequenz (siehe Diagramm)
Note On Operating And Control Medium
Oiled operation not possible
Permissible Surface Temperature Magnet (°C)
120
Standard Nominal Flow Rate (Standardised To DIN 1343)
50
Switching Time On 0.4 MPa (4 bar, 58 psi) And 12 V In New Condition (ms)
1,0
Switching Time On 0.4 MPa (4 bar, 58 psi) And 24 V In New Condition (ms)
0,7
Switching Time On 0.4 MPa (4 bar, 58 psi) And 48 V In New Condition (ms)
0,6
Switching Time On 0.6 MPa (6 bar, 87 psi) And 24 V In New Condition (ms)
0,75
Switching Time Off 0.4 MPa (4 bar, 58 psi) And 12 V In New Condition (ms)
0,9
Switching Time Off 0.4 MPa (4 bar, 58 psi) And 24 V In New Condition (ms)
0,9
Switching Time Off 0.4 MPa (4 bar, 58 psi) And 48 V In New Condition (ms)
0,8
Switching Time Off 0.6 MPa (6 bar, 87 psi) And 24 V In New Condition (ms)
0,90
Switching Time On 0.8 MPa (8 bar, 116 psi) And 24 V In New Condition (ms)
0,8
Switching Time Off 0.8 MPa (8 bar, 116 psi) And 24 V In New Condition (ms)
0,9
Switching Time On 0.05 MPa (0.5 bar, 7.25 psi) And 24 V In New Condition (ms)
0,7
Switching Time Off 0.05 MPa (0.5 bar, 7.25 psi) And 24 V In New Condition (ms)
0,9
