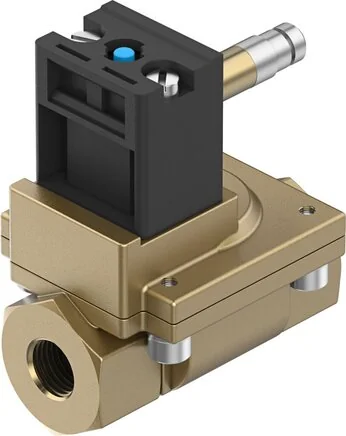

Festo - MN1H-2-1/2-MS-NPT-161729 - Solenoid Valve

SKU: festo-mn1h-2-1-2-ms-npt-161729

Browse all parts
Festo - MN1H-2-1/2-MS-NPT-161729 - Solenoid Valve

€227.33€194.30 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€227.33

Brand
Festo
Medium
Filtered compressed air, filter porosity 200 µm
Reset Mode
Pneumatic spring
Control Type
pilot operated
Fastening Type
pipe installation
Flow Direction
Not reversible
Valve Function
2/2 closed monostable
Screws Material
High-alloyed stainless steels
Exhaust Function
Cannot be throttled
Sealing Principle
Soft
Fitting Connection
1/2 NPT
Nominal Width (mm)
13
Construction Set Up
diaphragm valve
Protection Category
IP65
Hand Assist Actuation
tentative
Installation Position
arbitrary
Material Number Screw
14.301
Medium Pressure (bar)
0.5 to 10
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Medium Temperature (°C)
-10 to 60
Ambient Temperature (°C)
-10 to 60
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568312138
Manufacturer
Festo
