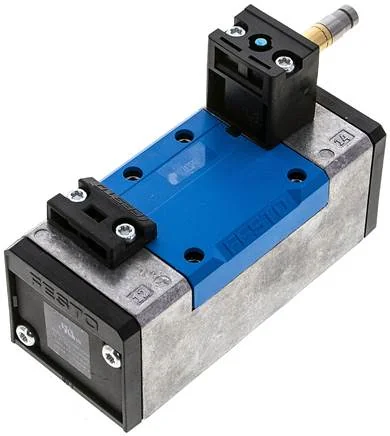

Festo - MN1H-5/2-D-2-C-159700 - Solenoid Valve

SKU: festo-mn1h-5-2-d-2-c-159700

Browse all parts
Festo - MN1H-5/2-D-2-C-159700 - Solenoid Valve

€240.62€205.66 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€240.62

Brand
Festo
Overlap
positive Überdeckung
ISO-Code
251
Permission
c UL us - Recognized (OL)
Reset Mode
Pneumatic spring
Control Type
pilot operated
Actuation Type
Electrical
Fastening Type
on connection plate, With Throughway bore and screw
Flow Direction
Not reversible
Seals Material
HNBR, NBR
Valve Function
5/2 monostable
Build Width (mm)
54
Exhaust Function
Can be throttled
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
11,5
Construction Set Up
Piston pusher
Protection Category
IP65
Complies To Standard
ISO 5599-1
Material Information
RoHs compliant
Aluminium die casting
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
56
Electrical Connection
Via N1 coil, order separately
Hand Assist Actuation
With Accessories ratcheting, tentative
Installation Position
arbitrary
Shifting Time On (ms)
46
Pneumatic Connection 1
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 2 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 2 to ISO 5599-1
Maritime Classification
see Certificate
Operating Pressure (bar)
2 to 10
Ambient Temperature (°C)
-5 to 50
Exhaust Control Connection 84
M5
Max. Positive Test Impulse At 0 Signal (µs)
3.700
Max. Negative Test Impulse For 1 Signal (µs)
4.600
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343) (l/min)
2.300
EAN
4052568012083
Manufacturer
Festo
