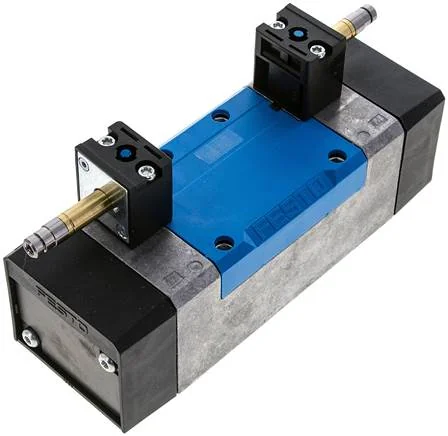

Festo - MN1H-5/3E-D-3-S-C-159706 - Solenoid Valve

SKU: festo-mn1h-5-3e-d-3-s-c-159706

Browse all parts
Festo - MN1H-5/3E-D-3-S-C-159706 - Solenoid Valve

€471.78€403.23 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€471.78

Brand
Festo
Overlap
positive Überdeckung
ISO-Code
369
Reset Mode
Mechanical spring
Control Type
pilot operated
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
on connection plate, With Throughway bore and screw
Flow Direction
Reversible
Seals Material
HNBR, NBR
Valve Function
5/3 vented
Build Width (mm)
65
Exhaust Function
Can be throttled
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Control Air Supply
external
Nominal Width (mm)
14,5
Construction Set Up
Piston pusher
Protection Category
IP65
Complies To Standard
ISO 5599-1
Material Information
RoHs compliant
Aluminium die casting
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
71
Electrical Connection
Via N1 coil, order separately
Hand Assist Actuation
With Accessories ratcheting, tentative
Installation Position
arbitrary
Shifting Time On (ms)
36
Control Pressure (bar)
3 to 10
Pneumatic Connection 1
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 2
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 3
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 4
Connection plate Size 3 to ISO 5599-1
Pneumatic Connection 5
Connection plate Size 3 to ISO 5599-1
Maritime Classification
see Certificate
Operating Pressure (bar)
-0.9 to 16
Ambient Temperature (°C)
-5 to 50
Control Air 12 Connection
Connection plate Size 3 to ISO 5599-1
Control Air 14 Connection
Connection plate Size 3 to ISO 5599-1
Exhaust Control Connection 82
M5
Exhaust Control Connection 84
M5
Max. Positive Test Impulse At 0 Signal (µs)
3.700
Max. Negative Test Impulse For 1 Signal (µs)
4.600
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343) (l/min)
4.600
EAN
4052568126964
Manufacturer
Festo
