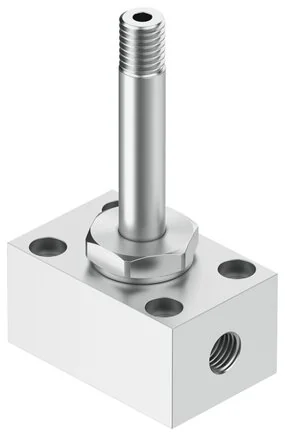

Festo - MOCH-3-1/8-2211 - Solenoid Valve

SKU: festo-moch-3-1-8-2211

Browse all parts
Festo - MOCH-3-1/8-2211 - Solenoid Valve

€184.52€157.71 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€184.52

Brand
Festo
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Valve Function
3/2 open monostable
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Nominal Width (mm)
2,5
Construction Set Up
Poppet valve with reset spring
Protection Category
IP65
Hand Assist Actuation
Ratcheting
Shifting Time On (ms)
12
LABS (PWIS) Conformity
VDMA24364-C1-L
Pneumatic Connection 1
G1/8
Pneumatic Connection 2
G1/8
Pneumatic Connection 3
G1/8
Shifting Time Off (ms)
13
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
0 to 0,7
Ambient Temperature (°C)
-5 to 40
Bearing Temperature (°C)
-40 to 100
Coil Characteristic Value
96 V DC: 11,0 W
Standard Nominal Flow Rate (Standardised To DIN 1343)
70
EAN
4052568110161
Manufacturer
Festo
