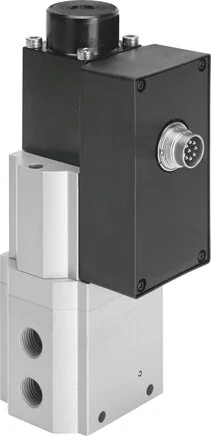

Festo - MPPES-3-1/4-PU-PO-420-187744 - Proportional Pressure Regulating Valve

SKU: festo-mppes-3-1-4-pu-po-420-187744

Browse all parts
Festo - MPPES-3-1/4-PU-PO-420-187744 - Proportional Pressure Regulating Valve

€1,880.66€1,607.40 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,880.66

Brand
Festo
KC-mark
KC-EMV
Permission
RCM mark
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With throughway bores
Valve Function
3-way proportional pressure regulator valve closed
Residual Ripple
10%
Housing Material
Aluminium wrought alloy
Operating Medium
Inerte Gase
Sealing Principle
Soft
Diaphragm Material
NBR
Construction Set Up
Pre-controlled piston control valve
Protection Category
IP65
Electrical Connection
runde Bauform
Installation Position
arbitrary
Shifting Time On (ms)
200
TARGET / ACTUAL Value
Stromtyp 4-20 mA
Input Pressure 1 (bar)
11 to 12
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/4
Shifting Time Off (ms)
890
Medium Temperature (°C)
0 to 60
Operating Pressure (MPa)
1,2
Short Circuit Resistance
for all electrical connections
Ambient Temperature (°C)
0 to 50
Nominal Width Venting (mm)
7
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (MPa)
0,005
Nominal Width Ventilation (mm)
7
Operating Voltage Range DC (V)
18 to 30
Pressure Regulation Range (MPa)
0 to 1
Nominal Operating Voltage DC (V)
24
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568148218
Manufacturer
Festo
