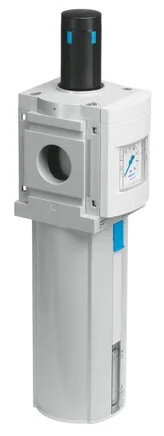

Festo - MS12-LFR-G-D7-CUV-LD-AS-537150 - Filter Regulating Valve

SKU: festo-ms12-lfr-g-d7-cuv-ld-as-537150

Browse all parts
Festo - MS12-LFR-G-D7-CUV-LD-AS-537150 - Filter Regulating Valve

€899.16€768.51 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€899.16

Brand
Festo
Size
12
Pore Size
5
Model Series
MS
Actuation Fuse
With Accessories lockable
Cover Material
PA
Fastening Type
With mounting bracket
Seals Material
NBR
Clamps Material
Aluminium wrought alloy
Filter Material
sintered bronze
Filter Porosity
5
Spring Material
spring steel
Clamp Protection
Integrated as metal bowl
Condensate Drain
manuell tastend
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Diaphragm Material
NBR
Construction Set Up
Pre-controlled membrane control valve
Controller Function
mit Rückstromverhalten
Swirl Disc Material
POM
Calming Disc Material
POM
Installation Position
vertical ± 5°
Valve Tappet Material
High-alloyed stainless steels
Control Panel Material
POM
Flow Secondary Venting
500
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Internal
Pneumatic Connection 2
Internal
Dividing Plate Material
POM
Filter Carrier Material
POM
Medium Temperature (°C)
5 to 60
Operating Pressure (bar)
2 to 12
Ambient Temperature (°C)
5 to 60
Bearing Temperature (°C)
-10 to 60
Max. Condensate Amount (ml)
400
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [6:4:4]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Degree Of Condensate Discharge
75
Max. Pressure Hysteresis (bar)
0,4
Pressure Regulation Range (bar)
0.5 to 12
Sight Glass Metal Clamps Material
PC
Note On Operating And Control Medium
Esteröl < 0,1mg/m³, nach ISO 8573-1:2010 [-:-:2]
Standard Nominal Flow Rate (Standardised To DIN 1343)
11000 to 14000
EAN
4052568172251
Manufacturer
Festo
