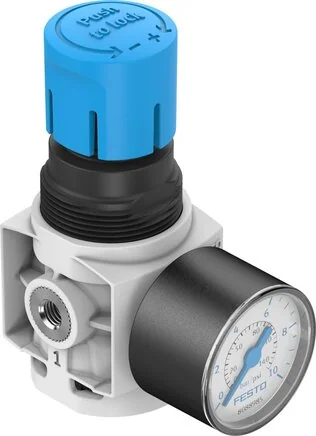

Festo - MS2-LR-M5-D6-AR-BAR-F1A-B-8167258 - Pressure Regulating Valve

SKU: festo-ms2-lr-m5-d6-ar-bar-f1a-b-8167258

Browse all parts
Festo - MS2-LR-M5-D6-AR-BAR-F1A-B-8167258 - Pressure Regulating Valve

€70.36€60.14 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€70.36

Brand
Festo
Size
2
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Spring Material
High-alloyed steel
Housing Material
PA reinforced
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Diaphragm Material
NBR
Construction Set Up
Directly controlled membrane control valve
Controller Function
mit Rückstromverhalten
Cover Down Material
PA
Presentable Unit(s)
psi
Installation Position
arbitrary
Valve Tappet Material
NBR
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
M5
Pneumatic Connection 2
M5
Rotary Button Material
POM
Medium Temperature (°C)
50
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
50
Bearing Temperature (°C)
50
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Pressure Hysteresis (MPa)
0,025
Pressure Regulation Range (bar)
0.5 to 7
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Standard Nominal Flow Rate (Standardised To DIN 1343)
170
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
EAN
4052568606077
Manufacturer
Festo
