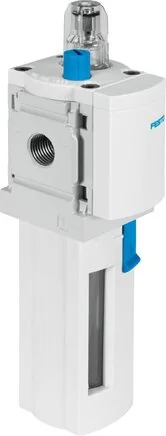

Festo - MS4-LOE-1/4-U-535790 - Lubricator

SKU: festo-ms4-loe-1-4-u-535790

Browse all parts
Festo - MS4-LOE-1/4-U-535790 - Lubricator

€101.58€86.82 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€101.58

Brand
Festo
Size
4
Model Series
MS
Material Note
RoHs compliant
Oil Viscosity
ISO VG 32
Fastening Type
With Accessories
Clamps Material
Aluminium wrought alloy
Window Material
PA
Clamp Protection
Integrated as metal bowl
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Food Compatibility
See expanded material information
Construction Set Up
Proportional standard oil mist lubricator
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Max. Oil Filling Volume
36
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
1 to 12
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Minimal Flow For Lubricator Function
40
Note On Operating And Control Medium
Oiled operation possible
Standard Nominal Flow Rate (Standardised To DIN 1343)
2200
EAN
4052568087081
Manufacturer
Festo
