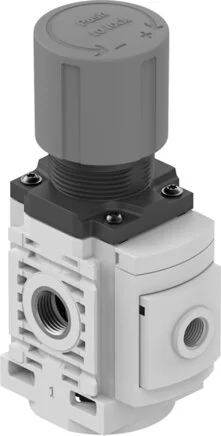

Festo - MS4-LR-1/4-D6-A8-F1A-B-8175243 - Pressure Regulating Valve

SKU: festo-ms4-lr-1-4-d6-a8-f1a-b-8175243

Browse all parts
Festo - MS4-LR-1/4-D6-A8-F1A-B-8175243 - Pressure Regulating Valve

€63.32€54.12 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€63.32

Brand
Festo
Size
4
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Spring Material
High-alloyed stainless steels
Housing Material
PA reinforced
Operating Medium
Inerte Gase
Pressure Display
G1/8 prepared
Construction Set Up
Directly controlled piston control valve
Controller Function
mit Rückstromverhalten
Cover Down Material
PA
Installation Position
arbitrary
Valve Tappet Material
POM
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Rotary Button Material
POM
Medium Temperature (°C)
50
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
50
Bearing Temperature (°C)
50
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Pressure Hysteresis (MPa)
0,050
Pressure Regulation Range (bar)
0.3 to 7
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Standard Nominal Flow Rate (Standardised To DIN 1343)
1800
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
EAN
4052568612849
Manufacturer
Festo
