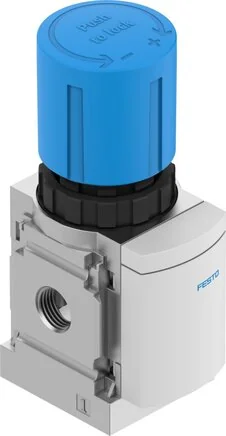

Festo - MS4-LR-1/4-D7-VS-588896 - Pressure Regulating Valve

SKU: festo-ms4-lr-1-4-d7-vs-588896

Browse all parts
Festo - MS4-LR-1/4-D7-VS-588896 - Pressure Regulating Valve

€55.47€47.41 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€55.47

Brand
Festo
Size
4
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Diaphragm Material
NBR
Food Compatibility
See expanded material information
Construction Set Up
Directly controlled membrane control valve
Controller Function
mit Rückstromverhalten
Installation Position
arbitrary
Control Panel Material
POM
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,08 to 1,4
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Connection Plate Material
Aluminium die casting
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (MPa)
0,025
Pressure Regulation Range (bar)
0.3 to 7
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
1700
Manufacturer
Festo
