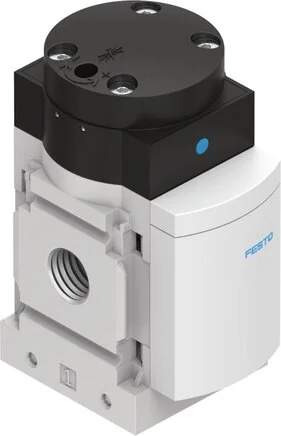

Festo - MS4N-DL-1/4-531991 - Pressure Build-Up Valve

SKU: festo-ms4n-dl-1-4-531991

Browse all parts
Festo - MS4N-DL-1/4-531991 - Pressure Build-Up Valve

€104.77€89.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€104.77

Brand
Festo
B-value
0.45
C-value
9,6
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Actuation Type
pneumatic
Fastening Type
With Accessories
Flow Direction
Not reversible
Seals Material
NBR
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Control Air Supply
external
Food Compatibility
See expanded material information
Construction Set Up
Piston seat
Hand Assist Actuation
None
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
1/4 NPT
Pneumatic Connection 2
1/4 NPT
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
4 to 14
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
2000
EAN
4052568338909
Manufacturer
Festo
