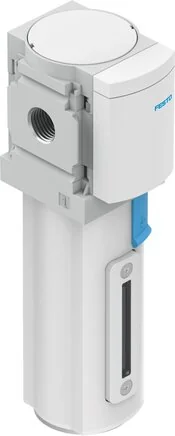

Festo - MS4N-LFX-1/4-U-535786 - Activated Carbon Filter

SKU: festo-ms4n-lfx-1-4-u-535786

Browse all parts
Festo - MS4N-LFX-1/4-U-535786 - Activated Carbon Filter

€139.87€119.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€139.87

Brand
Festo
Size
4
Model Series
MS
Material Note
RoHs compliant
Fastening Type
With Accessories
Clamps Material
Aluminium wrought alloy
Filter Material
Activated carbon
Window Material
PA
Clamp Protection
Integrated as metal bowl
Housing Material
Aluminium die casting
Operating Medium
Druckluft nach ISO 8573-1:2010 [3:4:2]
Construction Set Up
activated carbon filter
Residual Oil Content
0,003
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
1/4 NPT
Pneumatic Connection 2
1/4 NPT
Medium Temperature (°C)
5 to 30
Operating Pressure (bar)
0 to 14
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Air Purity Class At The Output
Druckluft nach ISO 8573-1:2010 [3:4:1]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Normal Flow For Air Purity Class
360
EAN
4052568343903
Manufacturer
Festo
