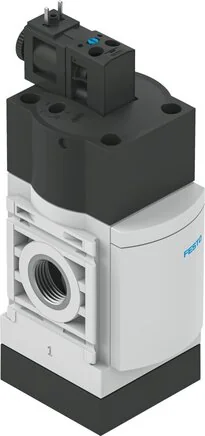

Festo - MS6-EDE-1/2-V24-F1A-B-8176513 - Pressure Build-Up Valve

SKU: festo-ms6-ede-1-2-v24-f1a-b-8176513

Browse all parts
Festo - MS6-EDE-1/2-V24-F1A-B-8176513 - Pressure Build-Up Valve

€473.89€405.03 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€473.89

Brand
Festo
Size
6
B-value
0.46
C-value
23,9
Overlap
negative Überdeckung
Reset Mode
Mechanical spring
Control Type
pilot operated
Model Series
MS
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With Wall / flat holder
Seals Material
NBR
Valve Function
3/2 closed monostable
Exhaust Function
Cannot be throttled
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Control Air Supply
Internal
Construction Set Up
Sitzventil, elektrisch betätigt
Protection Category
IP65
Switch On Time (ms)
31
Pitch Dimension (mm)
62
Electrical Connection
nach EN 175301-803
Hand Assist Actuation
tentative
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Pneumatic Connection 3
G1/2
Medium Temperature (°C)
50
Operating Pressure (MPa)
0,3 to 0,7
Signal Condition Display
With Accessories
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
60
Coil Characteristic Value
24 V DC: 2,3 W
Switching Position Display
mit Zubehoer
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Selection Of Additional Functions
mit Schalldämpfer
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Standard Nominal Flow Rate (Standardised To DIN 1343)
5000
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Standard Nominal Flow Rate, Exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)
4000
EAN
4052568625498
Manufacturer
Festo
