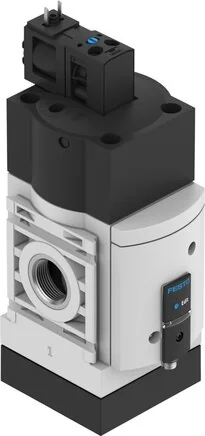

Festo - MS6-EE-1/2-V24-AD7-B-8201357 - Switch-On Valve

SKU: festo-ms6-ee-1-2-v24-ad7-b-8201357

Browse all parts
Festo - MS6-EE-1/2-V24-AD7-B-8201357 - Switch-On Valve

€314.20€268.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€314.20

Brand
Festo
Size
6
B-value
0.52
C-value
21,33
Overlap
negative Überdeckung
Reset Mode
Mechanical spring
Control Type
pilot operated
Model Series
MS
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With Wall / flat holder
Seals Material
NBR
Valve Function
3/2 closed monostable
Exhaust Function
Cannot be throttled
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Pressure Display
mit Drucksensor mit LCD-Anzeige
Control Air Supply
Internal
Construction Set Up
Sitzventil, elektrisch betätigt
Protection Category
IP65
Switch On Time (ms)
29
Pitch Dimension (mm)
62
Electrical Connection
nach EN 175301-803
Hand Assist Actuation
tentative
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Pneumatic Connection 3
G1/2
Medium Temperature (°C)
50
Operating Pressure (MPa)
0,3 to 0,7
Signal Condition Display
With Accessories
Ambient Temperature (°C)
0 to 50
Coil Characteristic Value
24 V DC: 2,3 W
Switching Position Display
mit Zubehoer
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Selection Of Additional Functions
mit Schalldämpfer
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
5000
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Standard Nominal Flow Rate, Exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)
4000
Manufacturer
Festo
