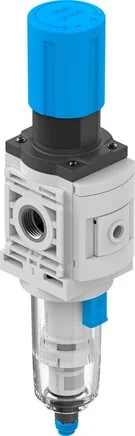

Festo - MS6-LFR-1/2-D6-C-P-VC-A8-B-8098303 - Filter Regulating Valve

SKU: festo-ms6-lfr-1-2-d6-c-p-vc-a8-b-8098303

Browse all parts
Festo - MS6-LFR-1/2-D6-C-P-VC-A8-B-8098303 - Filter Regulating Valve

€143.79€122.90 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€143.79

Brand
Festo
Size
6
Pore Size
5
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Clamps Material
PC
Filter Material
PE
Filter Porosity
5
Spring Material
Zinc-plated steel
Condensate Drain
manuell tastend
Housing Material
PA reinforced
Operating Medium
Inerte Gase
Pressure Display
G1/8 prepared
Construction Set Up
Directly controlled piston control valve
Controller Function
mit Rückstromverhalten
Installation Position
vertical ± 5°
Valve Tappet Material
POM
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Rotary Button Material
POM
Medium Temperature (°C)
5 to 50
Operating Pressure (MPa)
0,2 to 1
Ambient Temperature (°C)
5 to 50
Bearing Temperature (°C)
50
Max. Condensate Amount (ml)
27,3
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [6:4:4]
Corrosion Resistance Class KBK
1 - low corrosion stress
Degree Of Condensate Discharge
75
Max. Pressure Hysteresis (MPa)
0,035
Pressure Regulation Range (bar)
0.3 to 7
Note On Operating And Control Medium
Verträglichkeit mit Esteröl nicht gegeben
Standard Nominal Flow Rate (Standardised To DIN 1343)
4750
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
EAN
4052568569662
Manufacturer
Festo
