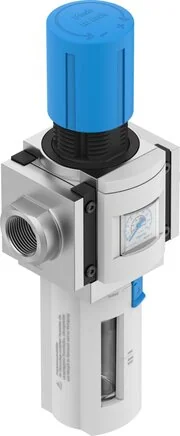

Festo - MS6-LFR-AGE-D7-E-R-M-8232913 - Filter Regulating Valve

SKU: festo-ms6-lfr-age-d7-e-r-m-8232913

Browse all parts
Festo - MS6-LFR-AGE-D7-E-R-M-8232913 - Filter Regulating Valve

€196.30€167.78 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€196.30

Brand
Festo
Size
6
Pore Size
40
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
Rotary button with stopper
Fastening Type
With Accessories
Seals Material
NBR
Clamps Material
PC
Filter Material
PE
Filter Porosity
40
Clamp Protection
Plastic basket
Condensate Drain
Manually rotating
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Diaphragm Material
NBR
Food Compatibility
See expanded material information
Construction Set Up
Filter regulator with pressure gauge
Controller Function
With relieving
Installation Position
vertical ± 5°
Control Panel Material
POM
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G3/4
Pneumatic Connection 2
G3/4
Dividing Plate Material
POM
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0 to 2
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Connection Plate Material
Aluminium die casting
Max. Condensate Amount (ml)
38
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [7:8:4]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Degree Of Condensate Discharge
75
Max. Pressure Hysteresis (MPa)
0,025
Pressure Regulation Range (bar)
0.5 to 12
Standard Nominal Flow Rate (Standardised To DIN 1343)
4500
Manufacturer
Festo
