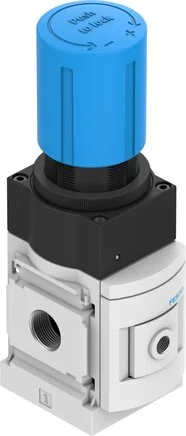

Festo - MS6-LRP-1/2-PE10-VS-8203861 - Precision Pressure Regulating Valve

SKU: festo-ms6-lrp-1-2-pe10-vs-8203861

Browse all parts
Festo - MS6-LRP-1/2-PE10-VS-8203861 - Precision Pressure Regulating Valve

€967.67€827.07 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€967.67

Brand
Festo
Size
6
Model Series
MS
Material Note
RoHs compliant
Fastening Type
With Accessories
Seals Material
NBR
Residual Ripple
10%
Housing Material
Aluminium
Operating Medium
Inerte Gase
Construction Set Up
vorgesteuertes Präzisions-Kolbenregelventil
Controller Function
With relieving
Max. Power Input (A)
0,16
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Pneumatic Connection 3
G1/4
Medium Temperature (°C)
10 to 50
Operating Pressure (MPa)
0,35 to 1,1
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
-10 to 60
Signal Range Analogue Input
0 - 10 V
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (bar)
0,05
Operating Voltage Range DC (V)
21.6 to 26.4
Pressure Regulation Range (bar)
0.1 to 10
Nominal Operating Voltage DC (V)
24
Note On Operating And Control Medium
Oiled operation not possible
Max. Electrical Power Consumption (W)
4,2
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
9000
EAN
4052568648992
Manufacturer
Festo
