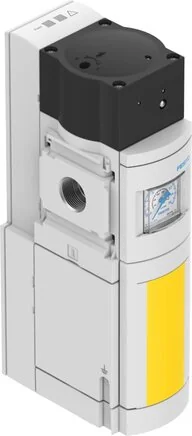

Festo - MS6-SV-1/2-E-10V24-AG-548715 - Pressure Build-Up And Vent Valve

SKU: festo-ms6-sv-1-2-e-10v24-ag-548715

Browse all parts
Festo - MS6-SV-1/2-E-10V24-AG-548715 - Pressure Build-Up And Vent Valve

€1,560.96€1,334.15 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,560.96

Brand
Festo
Size
6
B-value
0.21
C-value
19,3
KC-mark
KC-EMV
Overlap
negative Überdeckung
Permission
RCM mark
Reset Mode
Mechanical spring
Control Type
pilot operated
Model Series
MS
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With Accessories
Seals Material
NBR
Valve Function
Pressure build-up function
Safety Function
Vermeidung von unerwartetem Anlauf (Belüften)
Exhaust Function
Cannot be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Pressure Display
with pressure gauge
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Certification Body
Intertek UK-MCR-0086
Control Air Supply
Internal
Food Compatibility
See expanded material information
Construction Set Up
Piston seat
Piston Rod Material
High-alloyed stainless steels
Protection Category
mit Steckdose
Complies To Standard
DIN EN ISO 13849-1
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
62
Electrical Connection
Sub-D
Hand Assist Actuation
None
Installation Position
arbitrary
Shifting Time On (ms)
130
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Performance Level (PL)
Vermeidung von unerwartetem Anlauf (Belüften) / bis Kategorie 4, Performance Level e
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Pneumatic Connection 3
G1
Shifting Time Off (ms)
40
Medium Temperature (°C)
-10 to 50
Operating Pressure (MPa)
0,35 to 1
Signal Condition Display
potenzialfreier Kontakt
Ambient Temperature (°C)
-10 to 50
Bearing Temperature (°C)
-10 to 50
Position Detection Principle
Magnetic piston principle
Safety Integrity Level (SIL)
Vermeidung von unerwartetem Anlauf (Belüften) / SIL 3
Max. Switching Frequency (Hz)
0,5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Nominal Operating Voltage DC (V)
24
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Standard Nominal Flow Rate (Standardised To DIN 1343)
4300
Standard Nominal Flow Rate, Exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)
9000
EAN
4052568190118
Manufacturer
Festo
