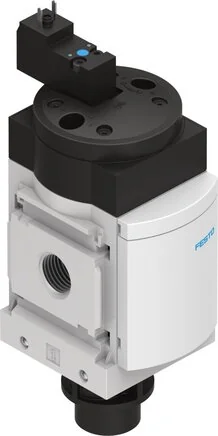

Festo - MS6N-EE-3/8-10V24-Z-542597 - Switch-On Valve

SKU: festo-ms6n-ee-3-8-10v24-z-542597

Browse all parts
Festo - MS6N-EE-3/8-10V24-Z-542597 - Switch-On Valve

€198.92€170.02 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€198.92

Brand
Festo
B-value
0.5
C-value
22
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With Accessories
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Exhaust Function
Cannot be throttled
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Control Air Supply
Internal
Food Compatibility
See expanded material information
Construction Set Up
Piston pusher
Protection Category
IP65
Electrical Connection
viereckige Bauform
Hand Assist Actuation
tentative
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
3/8 NPT
Pneumatic Connection 2
3/8 NPT
Pneumatic Connection 3
G1/2
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
4 to 10
Ambient Temperature (°C)
-10 to 50
Coil Characteristic Value
24 V DC: 2,5 W
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
5500
EAN
4052568347826
Manufacturer
Festo
