Festo - MS6N-LDM1-3/8-P20-543654 - Membrane Air Dryer

SKU: festo-ms6n-ldm1-3-8-p20-543654

Browse all parts

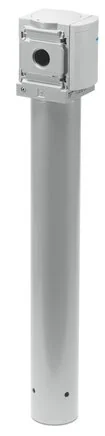

Festo - MS6N-LDM1-3/8-P20-543654 - Membrane Air Dryer

€1,476.46€1,261.93 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,476.46

Brand
Festo
Size
6
Model Series
MS
Material Note
RoHs compliant
Fastening Type
With Accessories
Clamps Material
Aluminium wrought alloy
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [1:4:2]
Food Compatibility
See expanded material information
Construction Set Up
diaphragm drier
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B2-L
Pneumatic Connection 1
3/8 NPT
Pneumatic Connection 2
3/8 NPT
Medium Temperature (°C)
2 to 50
Operating Pressure (bar)
3 to 12.5
Ambient Temperature (°C)
2 to 50
Bearing Temperature (°C)
-20 to 60
Pressure Dew Point Drop (K)
20
Air Purity Class At The Output
Druckluft nach ISO 8573-1:2010 [1:3:2]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation not possible
Standard Nominal Flow Rate (Standardised To DIN 1343)
200
EAN
4052568348762
Manufacturer
Festo
