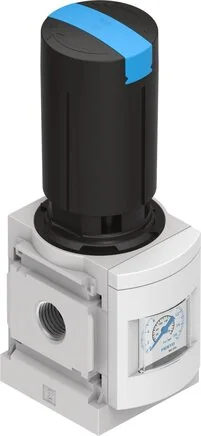

Festo - MS6N-LR-3/8-D6-AS-Z-531453 - Pressure Regulating Valve

SKU: festo-ms6n-lr-3-8-d6-as-z-531453

Browse all parts
Festo - MS6N-LR-3/8-D6-AS-Z-531453 - Pressure Regulating Valve

€94.75€80.98 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€94.75

Brand
Festo
Size
6
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
With Accessories lockable
Fastening Type
With Accessories
Seals Material
NBR
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Diaphragm Material
NBR
Food Compatibility
See expanded material information
Construction Set Up
Pressure regulator valve with pressure gauge
Controller Function
With relieving
Installation Position
arbitrary
Control Panel Material
POM
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
3/8 NPT
Pneumatic Connection 2
3/8 NPT
Dividing Plate Material
POM
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
0.8 to 20
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Max. Pressure Hysteresis (bar)
0,25
Pressure Regulation Range (bar)
0.3 to 7
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
5800
EAN
4052568335816
Manufacturer
Festo
