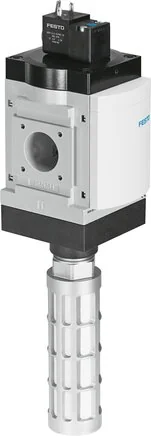

Festo - MS9-EE-G-V24-S-VS-562940 - Switch-On Valve

SKU: festo-ms9-ee-g-v24-s-vs-562940

Browse all parts
Festo - MS9-EE-G-V24-S-VS-562940 - Switch-On Valve

€482.32€412.24 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€482.32

Brand
Festo
Size
9
Overlap
positive Überdeckung
Reset Mode
Mechanical spring
Control Type
pilot operated
Model Series
MS
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
With Accessories
Seals Material
NBR
Valve Function
3/2 closed monostable
Exhaust Function
Cannot be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Construction Set Up
Piston pusher
Protection Category
IP65
Pitch Dimension (mm)
90
Electrical Connection
viereckige Bauform
Hand Assist Actuation
tentative
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Piston Pusher Material
POM
Pneumatic Connection 3
G1
Normal Nominal Flow 2-3
14100
Medium Temperature (°C)
60
Operating Pressure (bar)
3.5 to 16
Ambient Temperature (°C)
-10 to 60
Coil Characteristic Value
24 V DC: 4,5 W
Sound Pressure Level (dB(A))
93
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
18000
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
EAN
4052568210557
Manufacturer
Festo
