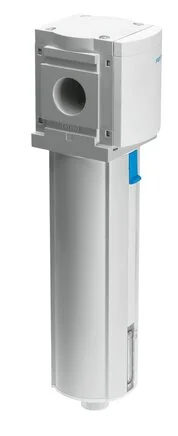

Festo - MS9-LFM-1-BUM-HF-553042 - Fine Filter

SKU: festo-ms9-lfm-1-bum-hf-553042

Browse all parts
Festo - MS9-LFM-1-BUM-HF-553042 - Fine Filter

€691.67€591.17 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€691.67

Brand
Festo
Size
9
Model Series
MS
Cover Material
PA
Fastening Type
With Accessories
Seals Material
NBR
Clamps Material
Aluminium wrought alloy
Filter Material
Borosilicate fibre
Filter Porosity
1
Window Material
PA
Condensate Drain
Manually rotating
Housing Material
Aluminium die casting
Operating Medium
Druckluft nach ISO 8573-1:2010 [6:-:4]
Construction Set Up
Fibre filter
Residual Oil Content
0,5
Installation Position
vertical ± 5°
Ex Ambient Temperature
-10°C <= Ta <= +60°C
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1
Pneumatic Connection 2
G1
Filter Effective Degree
99,99
Medium Temperature (°C)
60
Operating Pressure (MPa)
0 to 2
Ambient Temperature (°C)
60
Bearing Temperature (°C)
60
Max. Condensate Amount (ml)
225
Air Purity Class At The Output
Druckluft nach ISO 8573-1:2010 [5:-:3]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Filter Efficiency, Oil Aerosol
90
Filter Efficiency, Fine Particles
99
Min. Normal Flow For Air Unit Class
500
Max. Normal Flow For Air Purity Class
10000
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
EAN
4052568195236
Manufacturer
Festo
