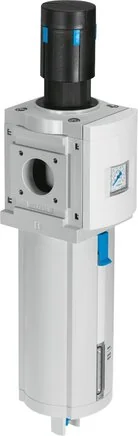

Festo - MS9-LFR-NG-D6-EUV-DI-AG-PSI-AS-564125 - Filter Regulating Valve

SKU: festo-ms9-lfr-ng-d6-euv-di-ag-psi-as-564125

Browse all parts
Festo - MS9-LFR-NG-D6-EUV-DI-AG-PSI-AS-564125 - Filter Regulating Valve

€433.31€370.35 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€433.31

Brand
Festo
Size
9
Pore Size
40
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
With Accessories lockable
Cover Material
PA reinforced
Fastening Type
With Accessories
Clamps Material
Aluminium wrought alloy
Filter Material
PE
Filter Porosity
40
Window Material
PA
Condensate Drain
Fully automatic
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Diaphragm Material
NBR
Clamp Seal Material
NBR
Construction Set Up
Directly controlled filter membrane control valve
Controller Function
mit Rückstromverhalten
Swirl Disc Material
POM
Installation Position
vertical ± 5°
Valve Tappet Material
POM
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Dividing Plate Material
POM
Filter Carrier Material
POM
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
2 to 12
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
60
Connection Plate Material
Aluminium die casting
Module Connector Material
Aluminium die casting
Mounting Bracket Material
Aluminium die casting
Max. Condensate Amount (ml)
220
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [7:4:4]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Degree Of Condensate Discharge
75
Max. Pressure Hysteresis (bar)
0,4
Pressure Regulation Range (bar)
0.5 to 7
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
EAN
4052568211547
Manufacturer
Festo
