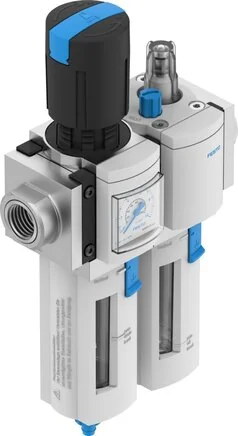

Festo - MSB4-AGC:J5:M1-8233021 - Maintenance Unit Combination

SKU: festo-msb4-agc-j5-m1-8233021

Browse all parts
Festo - MSB4-AGC:J5:M1-8233021 - Maintenance Unit Combination

€234.64€200.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€234.64

Brand
Festo
Size
4
Model Series
MS
Actuation Fuse
With Accessories lockable
Fastening Type
With Accessories
Seals Material
NBR
Clamps Material
PC
Filter Material
PE
Filter Porosity
40
Clamp Protection
Plastic basket
Condensate Drain
Manually rotating
Housing Material
Aluminium die casting
Max. Normal Flow
1.400
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Construction Set Up
Filter controller oiler
Controller Function
mit Rückstromverhalten
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G3/8
Pneumatic Connection 2
G3/8
Max. Oil Filling Volume
30
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
0,15 to 1,4
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Max. Condensate Amount (ml)
19
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [7:4:-]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Pressure Regulation Range (bar)
1 to 7
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568778842
Manufacturer
Festo
