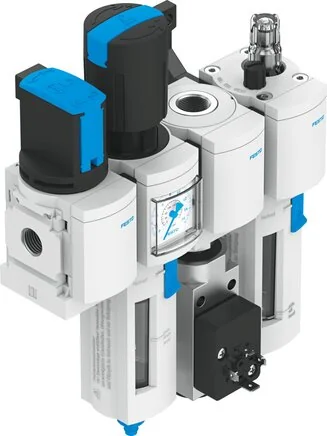

Festo - MSB6N-1/2:C3J1F3M1-WP-543573 - Maintenance Unit Combination

SKU: festo-msb6n-1-2-c3j1f3m1-wp-543573

Browse all parts
Festo - MSB6N-1/2:C3J1F3M1-WP-543573 - Maintenance Unit Combination

€637.57€544.93 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€637.57

Brand
Festo
Size
6
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
With Accessories lockable
Fastening Type
With Accessories
Clamps Material
PC
Filter Porosity
40
Clamp Protection
Plastic basket
Condensate Drain
Manually rotating
Housing Material
Aluminium die casting
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Food Compatibility
See expanded material information
Construction Set Up
Standardnebelöler
Controller Function
mit Rückstromverhalten
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
1/2 NPT
Pneumatic Connection 2
1/2 NPT
Pneumatic Connection 3
G1/2
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
4.5 to 18
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [7:4:-]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Pressure Regulation Range (bar)
4 to 12
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
3300
EAN
4052568348472
Manufacturer
Festo
