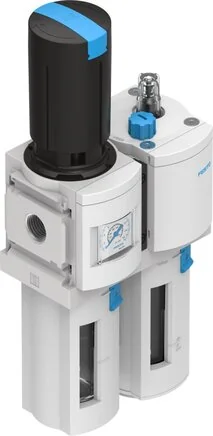

Festo - MSB6N-1/2-FRC1:J5M1-533979 - Maintenance Unit Combination

SKU: festo-msb6n-1-2-frc1-j5m1-533979

Browse all parts
Festo - MSB6N-1/2-FRC1:J5M1-533979 - Maintenance Unit Combination

€238.68€204.00 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€238.68

Brand
Festo
Size
6
Model Series
MS
Material Note
RoHs compliant
Actuation Fuse
Rotary button with integrated lock
Fastening Type
With Accessories
Filter Porosity
40
Clamp Protection
Plastic basket
Condensate Drain
Manually rotating
Operating Medium
Inerte Gase
Pressure Display
with pressure gauge
Food Compatibility
See expanded material information
Construction Set Up
Proportional standard oil mist lubricator
Controller Function
mit Rückstromverhalten
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
1/2 NPT
Pneumatic Connection 2
1/2 NPT
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
1.5 to 20
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-10 to 60
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [7:4:-]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Pressure Regulation Range (bar)
0.3 to 7
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Standard Nominal Flow Rate (Standardised To DIN 1343)
4800
EAN
4052568341671
Manufacturer
Festo
