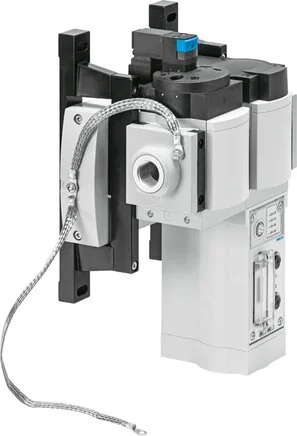

Festo - MSE6-E2M-5000-FB37-AGD-3992150 - Energy Efficiency Module

SKU: festo-mse6-e2m-5000-fb37-agd-3992150

Browse all parts
Festo - MSE6-E2M-5000-FB37-AGD-3992150 - Energy Efficiency Module

€4,212.07€3,600.06 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,212.07

Brand
Festo
Size
6
KC-mark
KC-EMV
Permission
RCM mark
Reset Mode
Mechanical spring
Model Series
MSE
Power-on Time
100%
Cover Material
PA reinforced
Seals Material
NBR
Valve Function
2/2 open monostable
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fieldbus Interface
2x Dose, M12x1, 4-polig, D-codiert
Accuracy Flow Value
± (3% o.m.v. + 0,3% FS)
Accuracy In ± % FS
3
Presentable Unit(s)
scfm
Protection Category
mit Steckdose
Electrical Connection
Plug
Installation Position
Horizontal ± 5°
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/2
Pneumatic Connection 2
G1/2
Medium Temperature (°C)
0 to 50
Operating Pressure (MPa)
0,35 to 1
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-10 to 60
Max. Power Input Logic (mA)
0,3
Reverse Polarity Protection
for operating voltage connections
Max. Pressure Hysteresis (MPa)
0,03
Pressure Regulation Range (MPa)
0,25 to 1
Flow Measurement Range End Value
5000
Max. Current Consumption, Load (mA)
0,1
Note On Operating And Control Medium
Oiled operation not possible
Flow Measurement Range Starting Value
50
Operating Voltage DC Load Voltage (V)
18 to 26.4
Pressure Measurement Range End Value (MPa)
1,4
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Pressure Measurement Range Starting Value (MPa)
0
Operating Voltage Range DC Electronics / Sensor (V)
18 to 30
Standard Nominal Flow Rate (Standardised To DIN 1343)
4500
EAN
4052568273927
Manufacturer
Festo
