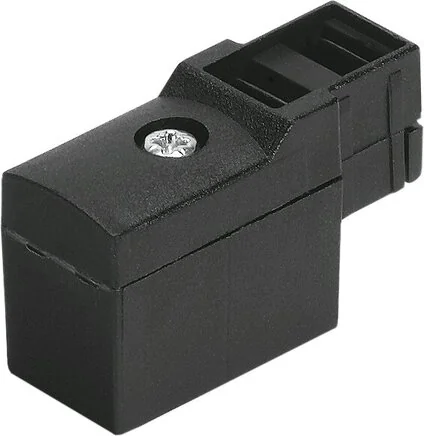

Festo - MSSD-N-550067 - Socket

SKU: festo-mssd-n-550067

Browse all parts
Festo - MSSD-N-550067 - Socket

€5.35€4.57 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€5.35

Brand
Festo
Cable Gland
M20x1,5
Cable Output
Angled
Material Note
RoHs compliant
Housing Colour
black
Seals Material
VMQ
Screws Material
Steel
Housing Material
PA reinforced
Based On Standard
EN 175301-803
Cable Diameter (mm)
8 to 10
Protection Category
IP65
LABS (PWIS) Conformity
VDMA24364-Zone III
Ambient Temperature (°C)
-25 to 80
Operating Voltage Range AC (V)
0 to 250
Operating Voltage Range DC (V)
0 to 24
Electrical Connection 1, Design
Angular
Conductor - Nominal Cross-section
1,5
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
16
Electrical Connection 1, Fastening Type
on solenoid valve with central screw M3
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 1, Connection Pattern
995648
Electrical Connection 1, Connection Technology
Wiring diagram shape A acc. to EN 175301-803
Electrical Connection 2, Connection Technology
Screw clamp
Electrical Connection 1, Number Of Pins / Wires
3
EAN
4052568051952
Manufacturer
Festo
