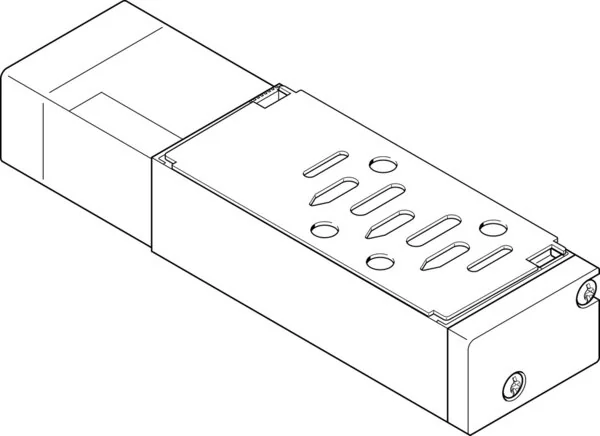

Festo - MUH-ZP-D-3-24G-34934 - Intermediate Plate

SKU: festo-muh-zp-d-3-24g-34934

Browse all parts
Festo - MUH-ZP-D-3-24G-34934 - Intermediate Plate

€410.74€351.06 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€410.74

Brand
Festo
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
Direct
Actuation Type
Electrical
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Nominal Width (mm)
14,5
Protection Category
IP65
Material Information
RoHs compliant
Pitch Dimension (mm)
72
Hand Assist Actuation
tentative
Installation Position
arbitrary
Control Pressure (bar)
2 to 10
Medium Temperature (°C)
-5 to 50
Operating Pressure (bar)
-0.9 to 10
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 40
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Nominal Operating Voltage DC (V)
24
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568115555
Manufacturer
Festo
