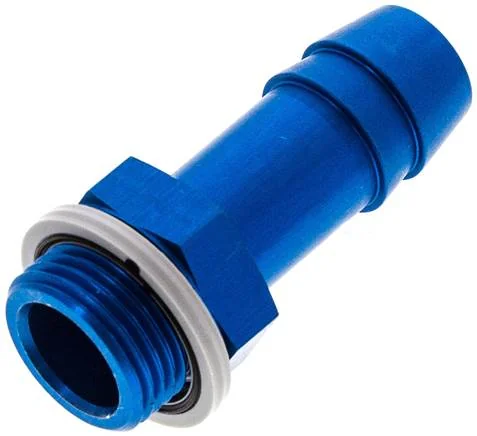

Festo - N-3/8-P-13-36160 - Hose Nozzle

SKU: festo-n-3-8-p-13-36160

Browse all parts
Festo - N-3/8-P-13-36160 - Hose Nozzle

€18.11€15.48 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€18.11

Brand
Festo
Design
straight shape
Packing Size
1
Material Note
RoHs compliant
Housing Material
Anodised aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Seal Type On Stud
gasket
Nominal Width (mm)
11
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G3/8
Pneumatic Connection 2
für Schlauch Innen-Ø 13 mm
Ambient Temperature (°C)
-10 to 60
Max. Tightening Torque (Nm)
15
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Operating Pressure Complete Temperature Range (bar)
-0,95 to 16
EAN
4052568023423
Manufacturer
Festo
