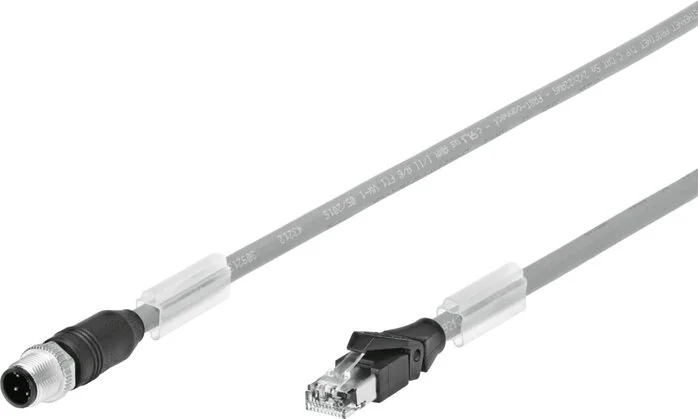

Festo - NEBC-D12G4-ES-10-S-R3G4-ET-8040454 - Connection Line

SKU: festo-nebc-d12g4-es-10-s-r3g4-et-8040454

Browse all parts
Festo - NEBC-D12G4-ES-10-S-R3G4-ET-8040454 - Connection Line

€94.21€80.52 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€94.21

Brand
Festo
Shielding
yes
Cable Set Up
4 x 0,34 mm²
Material Note
RoHs compliant
Housing Colour
black
Line Properties
energiekettentauglich
Cable Length (m)
10
Housing Material
TPE-U(PUR)
Line Designation
With Sign carrier
Special Features
Oil resistant
Cable Diameter (mm)
6,7
Cable Shield Colour
green
Protection Category
IP67
Screw Lock Material
Zinc pressure cast, nickel-plated
Transfer Properties
Entsprechend Kategorie 5, ISO/IEC 11801, Klasse D
Connection Frequency
50
Test Conditions Line
Energiekette: > 2 Millionen Zyklen, Biegeradius 100 mm
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Gold plated
Degree Of Contamination
3
Threaded Sleeve Material
Zinc pressure cast
Tolerance Cable Diameter
± 0,3 mm
Ambient Temperature (°C)
-25 to 80
Bearing Temperature (°C)
-25 to 80
Insulation Sleeve Material
PE
Surge Voltage Strength (kV)
0,8
Ethernet Cable Specification
Type: CAT.5
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
round
Electrical Connection 2, Design
Angular
Information About Surge Voltage
Wegen Schirmung ist ein Leckstrom bis 20 mA zulässig.
Conductor - Nominal Cross-section
AWG22
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
straight
Electrical Connection 2, Cable Output
straight
Current Carrying Capacity At 40 °C (A)
1,3
Electrical Connection 1, Fastening Type
Schraubverriegelung mit Sechskant SW13 und Längsrändel
Electrical Connection 2, Fastening Type
Ratcheting lock
Electrical Connection 1, Connection Type
Plug
Electrical Connection 2, Connection Type
Plug
Bending Radius, Moving Cable Placement (mm)
100
Electrical Connection 1, Connection Pattern
995612
Electrical Connection 2, Connection Pattern
995653
Electrical Connection 1, Occupied Pin / Wire
4
Electrical Connection 2, Occupied Pin / Wire
4
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Bending Radius, Permanent Cable Placement (mm)
40
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 D coded to EN 61076-2-101
Electrical Connection 2, Connection Technology
RJ45 nach IEC 60603-7-3
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 2, Number Of Pins / Wires
8
Ambient Temperature For Moving Cable Placements (°C)
-20 to 60
EAN
4052568286026
Manufacturer
Festo
