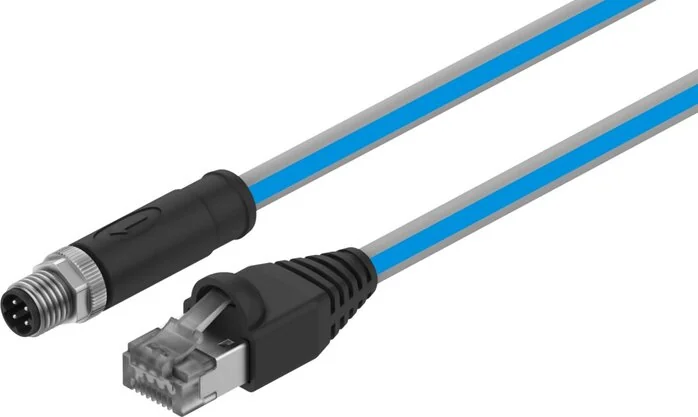

Festo - NEBC-D8G4-ES-5-N-S-R3G4-ET-8188946 - Connection Line

SKU: festo-nebc-d8g4-es-5-n-s-r3g4-et-8188946

Browse all parts
Festo - NEBC-D8G4-ES-5-N-S-R3G4-ET-8188946 - Connection Line

€45.43€38.83 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€45.43

Brand
Festo
Shielding
yes
Cable Set Up
2 x 2 x AWG26
Material Note
silikonfrei
Housing Colour
black
Line Properties
energiekettentauglich
Cable Length (m)
5
Housing Material
TPE-U(PUR)
Line Designation
Without sign holder
Special Features
Oil resistant
Based On Standard
EN 61076-2-114
Cable Diameter (mm)
5,5
Cable Shield Colour
silbergrau mit Streifen himmelblau
Protection Category
IP67
Screw Lock Material
brass, nickel-plated
Transfer Properties
gemäß Systemkommunikation AP
Connection Frequency
100
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
PUR
Installation Position
arbitrary
Over-voltage Category
II
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Copper alloy gold plated
Degree Of Contamination
3
Tolerance Cable Diameter
± 0,2 mm
Ambient Temperature (°C)
-40 to 80
Bearing Temperature (°C)
-20 to 70
Insulation Sleeve Material
PP
Protection Line Connection
Not available
Reverse Polarity Protection
no
Surge Voltage Strength (kV)
1,5
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
0 to 60
Electrical Connection 1, Design
round
Electrical Connection 2, Design
Angular
Nominal Operating Voltage DC (V)
24
Conductor - Nominal Cross-section
AWG26
Electrical Connection 1, Function
Control screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
straight
Electrical Connection 2, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
1
Electrical Connection 1, Fastening Type
Schraubverriegelung mit Längsrändel
Electrical Connection 2, Fastening Type
Ratcheting lock
Electrical Connection 1, Connection Type
Plug
Electrical Connection 2, Connection Type
Plug
Bending Radius, Moving Cable Placement (mm)
75
Electrical Connection 1, Connection Pattern
995938
Electrical Connection 2, Connection Pattern
995653
Electrical Connection 1, Occupied Pin / Wire
4
Electrical Connection 2, Occupied Pin / Wire
4
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Bending Radius, Permanent Cable Placement (mm)
18
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, D-codiert nach EN 61076-2-114
Electrical Connection 2, Connection Technology
RJ45 nach IEC 60603-7-3
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 2, Number Of Pins / Wires
8
Ambient Temperature For Moving Cable Placements (°C)
-20 to 80
EAN
4052568781422
Manufacturer
Festo
