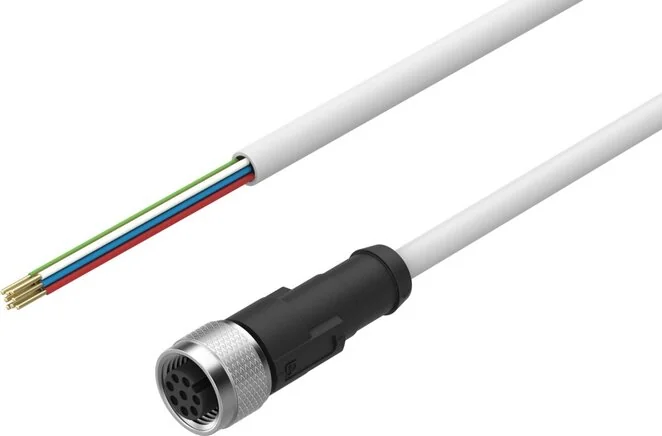

Festo - NEBC-M12G8-E-10-N-B-LE8-8094482 - Connection Line

SKU: festo-nebc-m12g8-e-10-n-b-le8-8094482

Browse all parts
Festo - NEBC-M12G8-E-10-N-B-LE8-8094482 - Connection Line

€82.82€70.79 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€82.82

Brand
Festo
Shielding
no
Wire Ends
Unshielded
Permission
c UL us - Listed (OL)
Cable Set Up
8 x 0,25 mm²
Material Note
RoHs compliant
Housing Colour
black
Seals Material
NBR
Line Properties
energiekettentauglich
Cable Length (m)
10
Housing Material
TPE-U(PUR)
Line Designation
Without sign holder
Based On Standard
EN 61076-2-101
Certification Body
UL E474609
Cable Diameter (mm)
6
Cable Shield Colour
silbergrau
Protection Category
IP67
Screw Lock Material
Zinc pressure cast, nickel-plated
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Brass
Degree Of Contamination
3
Tolerance Cable Diameter
± 0,2 mm
Ambient Temperature (°C)
-25 to 90
Insulation Sleeve Material
PP
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range AC (V)
0 to 30
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
round
Conductor - Nominal Cross-section
0,25
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
2
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
cable
Bending Radius, Moving Cable Placement (mm)
30
Electrical Connection 1, Connection Pattern
992265
Electrical Connection 1, Occupied Pin / Wire
8
Electrical Connection 2, Occupied Pin / Wire
8
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Bending Radius, Permanent Cable Placement (mm)
30
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 2, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
8
Electrical Connection 2, Number Of Pins / Wires
8
Ambient Temperature For Moving Cable Placements (°C)
-25 to 90
EAN
4052568456863
Manufacturer
Festo
