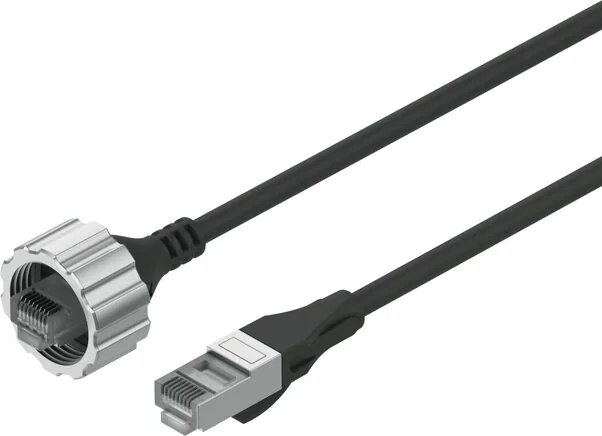

Festo - NEBC-R3G8M22-P-5-N-S-R3G8-8155228 - Connection Line

SKU: festo-nebc-r3g8m22-p-5-n-s-r3g8-8155228

Browse all parts
Festo - NEBC-R3G8M22-P-5-N-S-R3G8-8155228 - Connection Line

€188.71€161.29 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€188.71

Brand
Festo
Shielding
yes
Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Housing Colour
transparent
Seals Material
TPE-V
Line Properties
For static applications
Cable Length (m)
5
Housing Material
PC
Line Designation
Without sign holder
Certification Body
UL E239998
Cable Diameter (mm)
5,5
Cable Shield Colour
black
Protection Category
IP67
Screw Lock Material
High-alloyed stainless steels
Transfer Properties
Entsprechend Kategorie 5, ISO/IEC 11801, Klasse D
Complies To Standard
IEC 60603-7-3
Cable Sleeve Material
PVC
LABS (PWIS) Conformity
VDMA24364-Zone III
Plug Contacts Material
brass, Nickel and gold plated
Tolerance Cable Diameter
± 0,2 mm
Ambient Temperature (°C)
-20 to 55
Bearing Temperature (°C)
-20 to 70
Insulation Sleeve Material
PVC
Corrosion Resistance Class KBK
(im eingebauten Zustand)
Operating Voltage Range DC (V)
0 to 60
Electrical Connection 1, Design
Angular
Electrical Connection 2, Design
Angular
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
straight
Electrical Connection 2, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
1
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 2, Fastening Type
Ratcheting lock
Electrical Connection 1, Connection Type
Plug
Electrical Connection 2, Connection Type
Plug
Electrical Connection 1, Connection Pattern
995653
Electrical Connection 2, Connection Pattern
995653
Electrical Connection 1, Occupied Pin / Wire
8
Electrical Connection 2, Occupied Pin / Wire
8
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Bending Radius, Permanent Cable Placement (mm)
30
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
RJ45
Electrical Connection 2, Connection Technology
RJ45
Electrical Connection 1, Number Of Pins / Wires
8
Electrical Connection 2, Number Of Pins / Wires
8
EAN
4052568595241
Manufacturer
Festo
