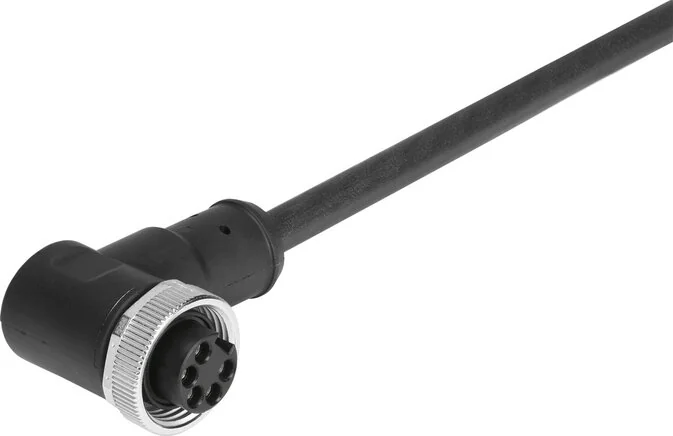

Festo - NEBU-G78W5-K-2-N-LE5-573855 - Power Connection Socket

SKU: festo-nebu-g78w5-k-2-n-le5-573855

Browse all parts
Festo - NEBU-G78W5-K-2-N-LE5-573855 - Power Connection Socket

€82.99€70.93 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€82.99

Brand
Festo
Cable Set Up
5x1.5
Housing Colour
black
Line Properties
Standard
Cable Length (m)
2,0
Housing Material
TPE-U(PUR)
Line Designation
Without sign holder
Based On Standard
NFPA/T3.5.29 R1-2007
Cable Diameter (mm)
8,7
Cable Shield Colour
black
Protection Category
IP65, IP67
Screw Lock Material
brass, nickel-plated
Connection Frequency
100
Material Information
RoHs compliant
Test Conditions Line
Test conditions on request
Cable Sleeve Material
TPE-U(PUR)
Plug Contacts Material
brass, Gold plated
Degree Of Contamination
3
Tolerance Cable Diameter
± 0,2 mm
Ambient Temperature (°C)
-20 to 80
Surge Voltage Strength (kV)
4,0
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range AC (V)
0 to 300
Operating Voltage Range DC (V)
0 to 300
Electrical Connection 1, Design
round
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
Angled
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40°C (A)
9
Electrical Connection 1, Fastening Type
Screw lock
Conductor - Nominal Cross-section (mm²)
1,50
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
cable
Electrical Connection 1, Occupied Pin / Wire
5
Electrical Connection 2, Occupied Pin / Wire
5
Bending Radius, Permanent Cable Placement (mm)
>= 65 mm
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
Electrical Connection 1, Connection Technology
G7/8 coded acc. to NFPA/T3.5.29 R1-2007
Electrical Connection 2, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
5
Electrical Connection 2, Number Of Pins / Wires
5
EAN
4052568102913
Manufacturer
Festo
