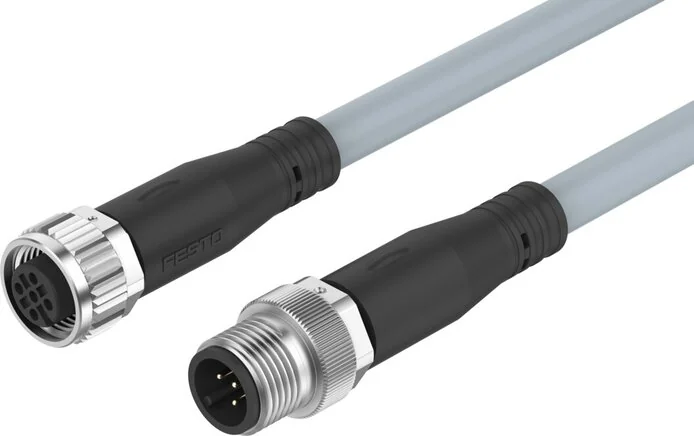

Material Note
phosphorsäureesterfrei
Line Properties
energiekettentauglich
Housing Material
TPE-U(PUR)
Line Designation
Without sign holder
Special Features
Oil resistant
Screw Lock Material
brass, nickel-plated
Complies To Standard
EN 61076-2-101
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 75 mm
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
Copper alloy gold plated
Tolerance Cable Diameter
± 0,1 mm
Ambient Temperature (°C)
-25 to 80
Insulation Sleeve Material
PP
Surge Voltage Strength (kV)
1,5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range AC (V)
0 to 60
Operating Voltage Range DC (V)
0 to 60
Electrical Connection 1, Design
round
Electrical Connection 2, Design
round
Conductor - Nominal Cross-section
1
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
straight
Electrical Connection 2, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
4
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 2, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
Plug
Bending Radius, Moving Cable Placement (mm)
71
Electrical Connection 1, Connection Pattern
995384
Electrical Connection 2, Connection Pattern
995383
Electrical Connection 1, Occupied Pin / Wire
5
Electrical Connection 2, Occupied Pin / Wire
5
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
Bending Radius, Permanent Cable Placement (mm)
21
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 2, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
5
Electrical Connection 2, Number Of Pins / Wires
5
Ambient Temperature For Moving Cable Placements (°C)
-5 to 80
