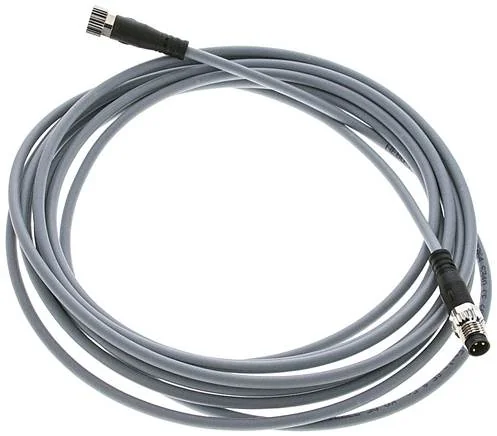

Line Properties
Cable track capable
Housing Material
TPE-U(PUR)
Line Designation
with 2x sign carrier
Special Features
Oil resistant
Protection Category
IP65, IP68, IP69K
Screw Lock Material
brass, nickel-plated
Complies To Standard
EN 61076-2-104, Wire colours and connection numbers acc. to EN 60947-5-2
Material Information
halogen free, Copper and PTFE-free, RoHs compliant, Phosphoric acid ester free
Test Conditions Line
Bending radius strength to Festo standard, Cable track: 5 million cycles, bending radius 28 mm, Test conditions on request
Cable Sleeve Material
TPE-U(PUR)
Plug Contacts Material
Copper alloy gold plated
Tolerance Cable Diameter
± 0,1 mm
Ambient Temperature (°C)
-25 to 80
Insulation Sleeve Material
PP
Surge Voltage Strength (kV)
1,5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range AC (V)
0 to 60
Operating Voltage Range DC (V)
0 to 60
Electrical Connection 1, Design
round
Electrical Connection 2, Design
round
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
straight
Electrical Connection 2, Cable Output
straight
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40°C (A)
3,0
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 2, Fastening Type
Screw lock
Conductor - Nominal Cross-section (mm²)
0,25
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
Plug
Bending Radius, Moving Cable Placement (mm)
39
Electrical Connection 1, Occupied Pin / Wire
3
Electrical Connection 2, Occupied Pin / Wire
3
Bending Radius, Permanent Cable Placement (mm)
12
CE Certificate (See Declaration Of Conformity)
acc. to EU Low voltage Directive, acc. to EU-RoHS Directive
Electrical Connection 1, Connection Technology
M8x1 A coded to EN 61076-2-104
Electrical Connection 2, Connection Technology
M8x1 A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
Electrical Connection 2, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-5 to 80
