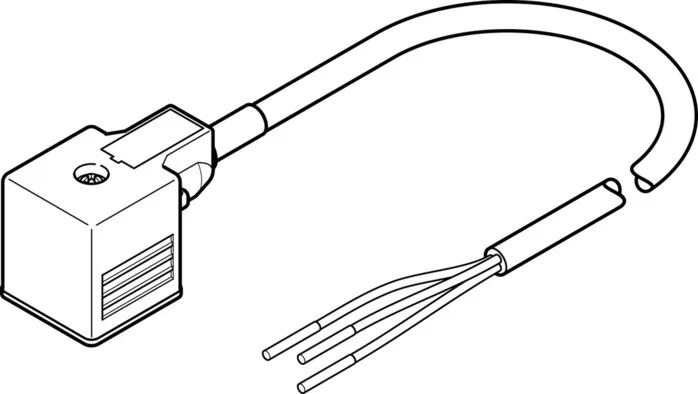

Festo - NEBV-A1W3F-P-K-0.6-N-LE3-3679776 - Connection Line

SKU: festo-nebv-a1w3f-p-k-0-6-n-le3-3679776

Browse all parts
Festo - NEBV-A1W3F-P-K-0.6-N-LE3-3679776 - Connection Line

€19.43€16.61 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€19.43

Brand
Festo
Permission
c CSA us (OL)
Cable Set Up
3x0,75
Housing Colour
black
Line Properties
Standard
Cable Length (m)
0,6
Housing Material
TPE-U(PUR)
Line Designation
Without sign holder
Cable Diameter (mm)
5,9
Cable Shield Colour
Grey
Protection Category
IP67
Additional Functions
protection circuit
Material Information
LABS containing materials included, RoHs compliant
Test Conditions Line
Test conditions on request
Cable Sleeve Material
TPE-U(PUR)
Degree Of Contamination
3
Tolerance Cable Diameter
± 0,3 mm
Ambient Temperature (°C)
-25 to 80
Insulation Sleeve Material
PP
Protection Line Connection
Available
Switching Status Indicator
LED yellow
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range AC (V)
18 to 30
Operating Voltage Range DC (V)
18 to 30
Electrical Connection 1, Design
Angular
Nominal Operating Voltage AC (V)
24
Nominal Operating Voltage DC (V)
24
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
Angled
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40°C (A)
4
Electrical Connection 1, Fastening Type
on solenoid valve with central screw M3
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
cable
Electrical Connection 1, Occupied Pin / Wire
4
Electrical Connection 2, Occupied Pin / Wire
3
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-RL
Electrical Connection 1, Connection Technology
Wiring diagram shape A based on EN 175301-803
Electrical Connection 2, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 2, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-25 to 80
EAN
4052568273514
Manufacturer
Festo
